Compression Molding Machine
Advantage
As market economy is developing,high efficiency and low power consumption is the trend.More and more customers have a request of improving product quality.Our company hereby made sy-30by-s cap compression molding machine.This machine is improved by the standard machine,compare with the same as power consumption machine which can reduce the 25-30% output. Our mold surface has a special coating by European imported equipment.It improves the wearing resistance of the mold and molding life can be used for a long time.
Scope Of Application
Parameter

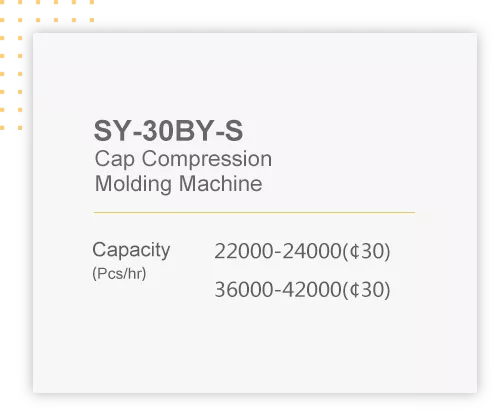

SY-30By-S Cap Compression Molding Machine
Type
Raw Materials

Capacity

(Pcs/hr)

Diameter of Cap

Height of Cap
Mold Number
Actual Power Consumption
Air compressor (provide by userself）
Voltage
Machine weight/Net weight
Dimensions/L*W*H
24T
PP/HDPE/LDPE
22000-24000
(¢30)
22-42mm
10-25mm
24 Cavity
32-35kw
0.8mpa;1.5m3
220v60hz /380v 50h
4200kg
4500*1800*2100mm
36T
PP/HDPE/LDPE
36000-42000
(¢30)
22-42mm
10-25mm
36 Cavity
58-60kw
1.0mpa;3.0m3
220v60hz /380v 50h
5200kg
5800*2100*2200mm
Select Industry
No matter what industry you are in, we can provide the perfect solution for your bottle cap needs.
